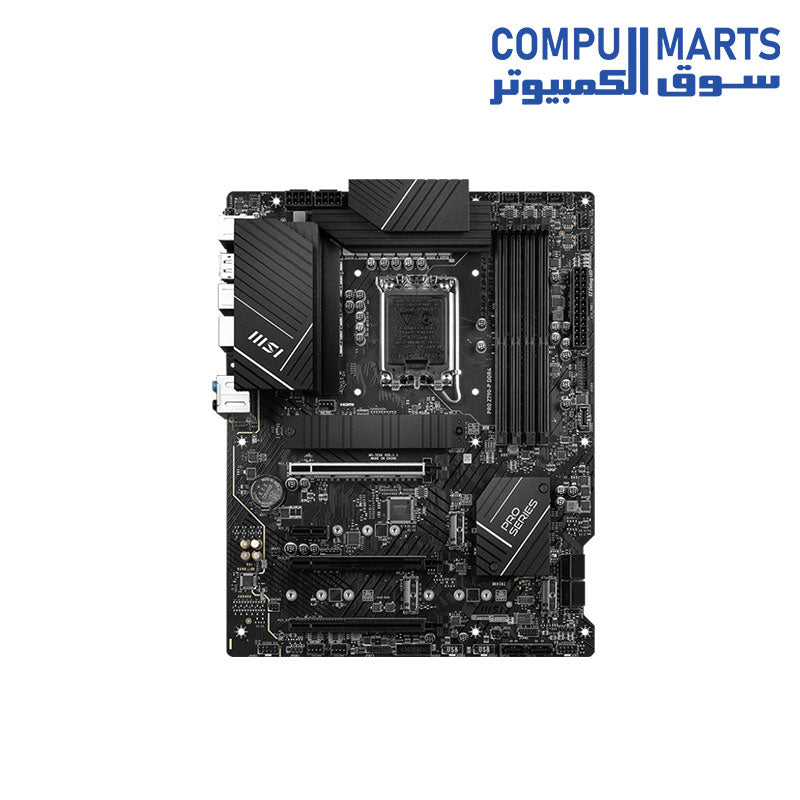

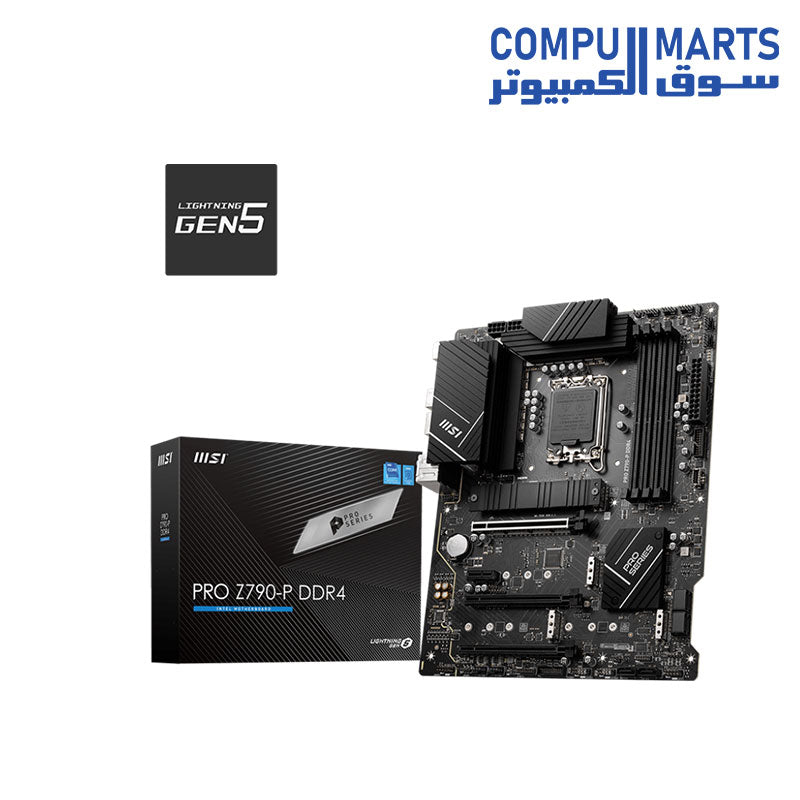

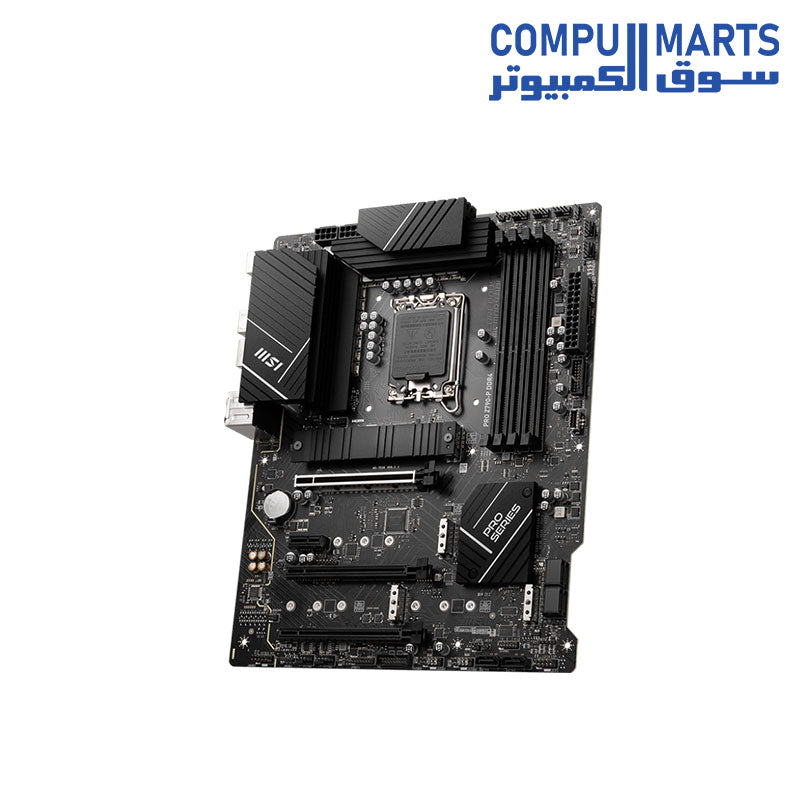

MSI PRO Z790-P DDR4 Motherboard

Vendor: MSI
SKU: 4711377011433
Availability: In Stock
Product Type: Motherboards
10,500.00 EGP
12,450.00 EGP
10,500.00 EGP
Save 1,950.00 EGP
Limited-Time Offers, End in: 151D 8H 23M 0S
Ask An Expert

SHIPPING ALL ACROSS EGYPT!

Safe shipping

Estimated to be delivered on 1-5 Working Days .

Enjoy With Compumarts Warranty

Learn More.
Z790-P-DDR4-PRO-MSI-Motherboard

MSI PRO Z790-P DDR4 Motherboard

12,450.00 EGP 10,500.00 EGP
Z790-P-DDR4-PRO-MSI-Motherboard
Z790-P-DDR4-PRO-MSI-Motherboard
Z790-P-DDR4-PRO-MSI-Motherboard
Z790-P-DDR4-PRO-MSI-Motherboard

MSI PRO Z790-P DDR4 Motherboard

12,450.00 EGP 10,500.00 EGP
Description

MSI PRO Z790-P DDR4











  • Supports 12th/13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket

  • Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)

  • Enhanced Power Design: 14+1+1 DRPS with 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost

  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience

  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2

  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds

  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

SMT PCIE 5.0 SLOT

The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

LIGHTNING GEN 5 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

CHIPSET

INTEL Z790

CPU SUPPORT

Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors

LGA 1700

MEMORY

4x DDR4, Maximum Memory Capacity 128GB

Memory Support 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133(By JEDCE & POR)

Max. overclocking frequency:

• 1DPC 1R Max speed up to 5333+ MHz

• 1DPC 2R Max speed up to 4800+ MHz

• 2DPC 1R Max speed up to 4400+ MHz

• 2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel Extreme Memory Profile (XMP)

ONBOARD GRAPHICS

1x HDMI

1x DisplayPort

Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz

Support DP 1.4, maximum resolution of 4K 60Hz

Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT

3x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

STORAGE

4x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

6x SATA 6G

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

USB

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 3.2 Gen1 Type A (Rear)

4x USB 3.2 Gen1 Type A (Front)

1x USB 3.2 Gen2 Type A (Rear)

1x USB 3.2 Gen2 Type C (Front)

1x USB 3.2 Gen2x2 Type C (Rear)

LAN

Intel 2.5Gbps LAN

AUDIO

Realtek ALC897 Codec

7.1-Channel High Definition Audio

INTERNAL I/O

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

6x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x TBT connector (JTBT, supports RTD3)

1x Tuning Controller connector(JDASH)

2x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

4x USB 3.2 Gen1 Type A ports

1x USB 3.2 Gen2 Type C ports

LED FEATURE

4x EZ Debug LED

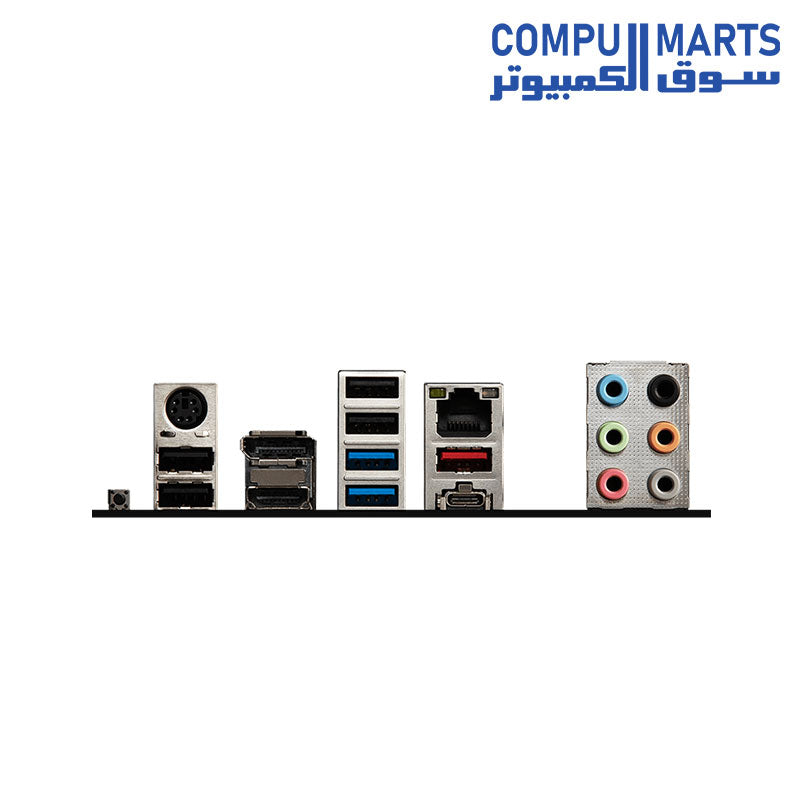

BACK PANEL PORTS

  1. Keyboard / Mouse

  2. DisplayPort

  3. USB 2.0

  4. 2.5G LAN

  5. Audio Connectors

  6. Flash BIOS Button

  7. USB 2.0

  8. HDMI

  9. USB 3.2 Gen 1 5Gbps (Type-A)

  10. USB 3.2 Gen 2x2 20Gbps (Type-C)

  11. USB 3.2 Gen 2 10Gbps (Type-A)

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit

PCB DIMENSION

ATX

243.84mmx304.8mm
