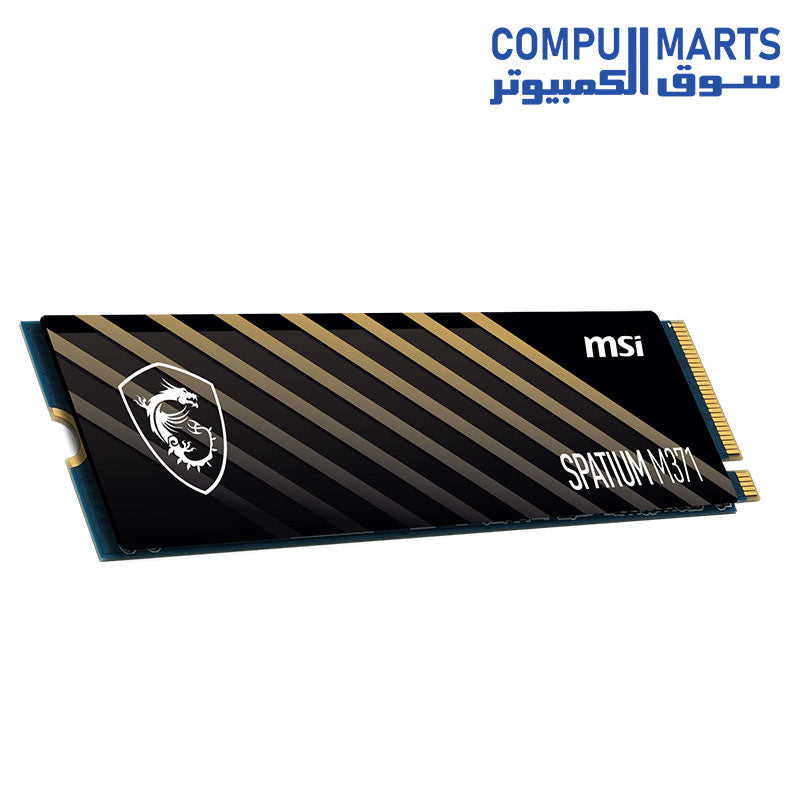

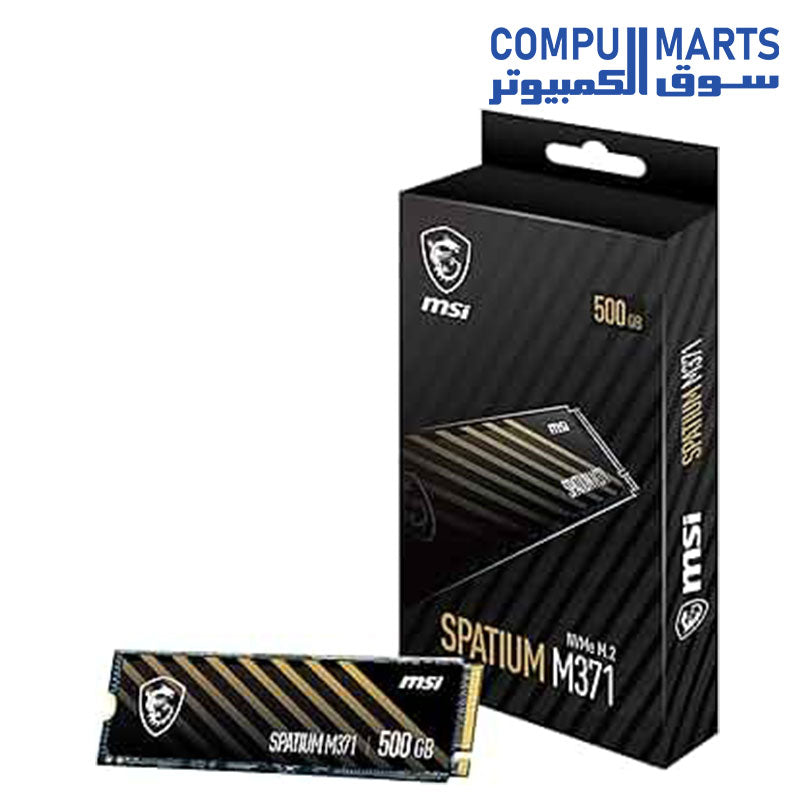

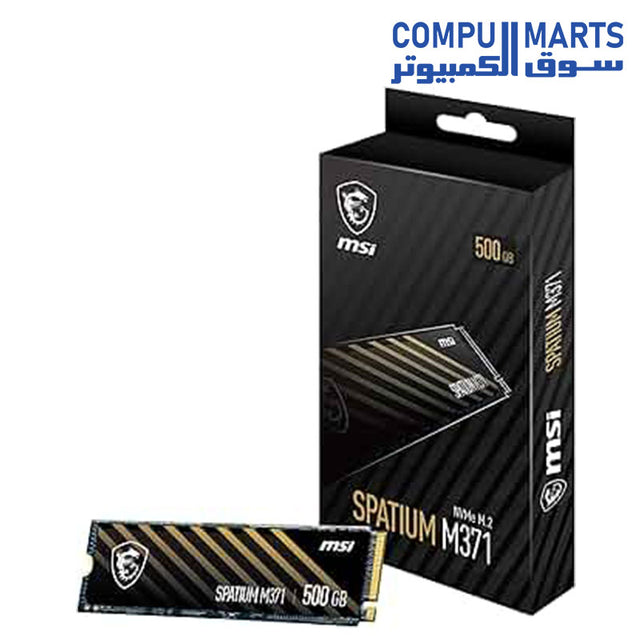

MSI SPATIUM M371 NVMe M.2 Internal SSD - PCIe Gen3, 3D NAND

MSI SPATIUM M371 NVMe M.2 Internal SSD - PCIe Gen3, 3D NAND

Model Name SPATIUM M371 NVMe M.2
Capacity 500GB 1TB 2TB
Controller PHISON E13T
Flash Memory 3D NAND
Form Factor M.2 2280
Interface PCIe Gen3x4, NVMe 1.3
Compatibility PCIe Gen3 / Gen2 / Gen1
Dimensions 80.00mm (L) x 22.00mm (W) x 2.15mm (H)
Sequential Read up to (MB/s) 2200 2350 2350
Sequential Write up to (MB/s) 1150 1700 1900
Random Read 4KB up to
(IOPS) 60,000 90,000 135,000
Random Write 4KB up to
(IOPS) 200,000 280,000 350,000
Maximum Operating Power
(W) 2.4 3.2 3.4
Idle Power PS3 (mW) 30
Low Power L1.2 (mW) 5
Operating Temperatures 0°C – 70°C
Storage Temperatures -40°C – 85°C
Terabytes Written (TBW) 110 210 480
Mean Time Between Failure
(MTBF) Up to 1,500,000 Hours
Limited Warranty 5 Years, or the coverage for the maximum
TBW as stated, whichever comes first.
Advanced Features
TRIM (Performance Optimization, OS
Support required)
SMART (Self-Monitoring, Analysis and
Reporting Technology)
LDPC (Low Density Parity Check) ECC
Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
Pyrite (Encryption, Data Security)
FEATURES
Blazing Speeds
Optimized for the PCIe Gen3 interface.
3D NAND Flash
3D NAND Flash technology brings dense storage in a compact
design and allows storage capacities up to 2TB.
Security & Reliability
Built-in data security and error-correction capabilities extend the
longevity of the NAND flash storage.
Low Latency Gaming
Enjoy minimal latency in smooth gameplay and loading games
with optimized high-performance bandwidth and throughput.
Nonstop Creativity Booster
Keep up nonstop productivity by opening up images, movies,
documents, and heavy-duty applications at lightning speeds.
MSI Center
Migrate data with backup & restore functionality, monitor drive
health and performance metrics in real-time in MSI Center.
Optimal M.2 SSD
Designed in the M.2 2280 form factor, MSI SSDs are easy to install
into external enclosures, desktops, or laptops.
5 Years Warranty
MSI stands by the quality and reliability of their SSD's with a 5
year limited warranty.
TEST CONFIGURATION
Sequential and random performance, and power consumption were measured
with the system configurations listed below. All performance data was tested
with the SSD as a secondary drive.
Interface PCIe Gen3x4
Operating System Windows 11 Pro 21H2 OS Build 22000.795
CPU 12th Gen Intel Core i7-12700KF @3.60GHz
Memory Crucial DDR4-2400 8G x2
Chipset PRO Z690-A WIFI DDR4
Test Program Crystal Diskmark 8.04, ATTO Disk Benchmark V4.01.0f1,
IO Meter v1.1.0
