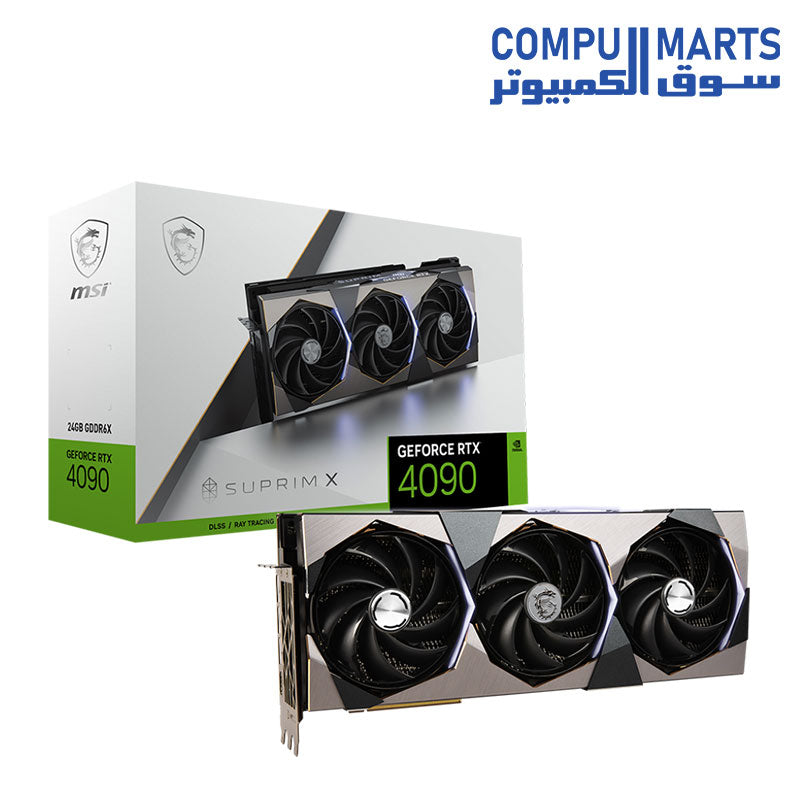

MSI Suprim GeForce RTX 4090 24GB GDDR6X PCI Express 4.0
Powered by GeForce RTX 40 Series and DLSS 3
New Streaming Multiprocessors : Up to 2x performance and power efficiency
Fourth-Gen Tensor Cores
Up to 4x performance with DLSS 3
vs. brute-force rendering
Third-Gen RT Cores : Up to 2x ray tracing performance
CHANGE THE GAME
Ascend to a superior experience with SUPRIM. See, hear, and feel a profoundly elevated graphics card built with high-quality materials and assembled with enthusiast features.
1.SHARP LOOKS

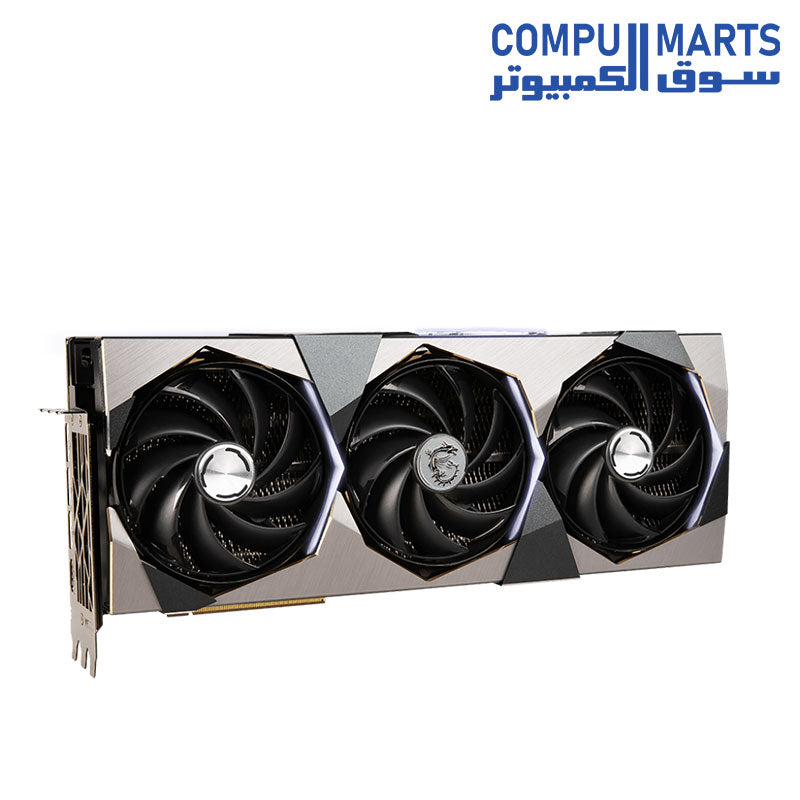

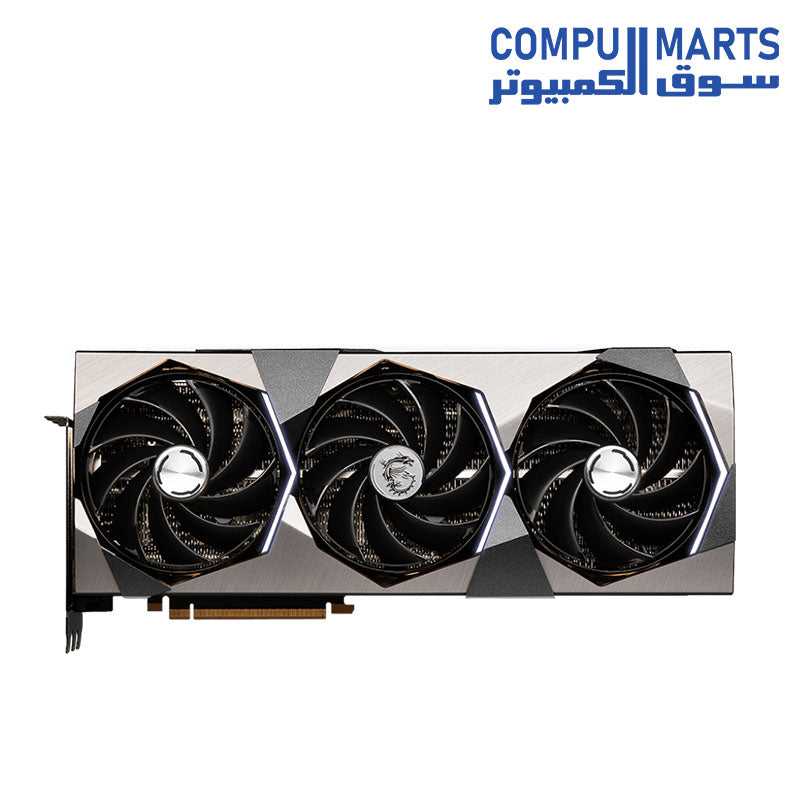

The second iteration of SUPRIM inherits the exterior design philosophy of its predecessor, with a brushed metal cover, octagon-shaped fan cutouts and chevrons around each fan.
2. POLISHED EDGES
Beveled edges are polished several times with a diamond-tipped cutter to achieve a mirror-finish. Clean sharp lines emphasize the metal construction to sight and touch.
3. FINISHING TOUCHES
The motif of straight lines continue around the fans with octagonal cutouts featuring polished 45-degree beveled edges.
TRI-FROZR 3S
THERMAL DESIGN
Upgraded fans, airflow control, and other thermal innovation make TRI-FROZR 3S the best air-cooling solution yet from MSI.
TORX FAN 5.0 incorporates design improvements that result in +23% increased airflow compared to an axial fan
KEEPING THE CORE COOL
CORE PIPE
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the vapor chamber to then spread heat along the full length of the heatsink.
AIR ANTEGRADE FIN
Fins with a V-shaped cutout are located at the airflow passthrough to improve flow efficiency. Optimizing the inclination angle and increasing the wave notch shapes the air resistance towards the center, pushing out warm air faster like a nozzle.
WAVE-CURVED 3.0
Additional efficiency is gained by adjusting the size of the wave edges under the fan motor and other spots where there is less airflow.
FILLED FINS
Updated heat pipe pathing has allowed more space for additional heatsink fins
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is not needed. The fans will automatically start spinning again when the heat is on during gaming.
DOUBLE-BALL BEARING
Two sets of durable ball bearings spin the TORX FANs for years of intense and lengthy gaming sessions.
High-Efficiency CarbonyI Inductors (HCI)
Manufacturing and material improvements to our choke parts have culminated as High-Efficiency Carbonyl Inductors (HCI.) One-piece molding allows this design to operate with less choke noise and better electric filtering.
SPS
Highly efficient Smart Power Stages (SPS) allow for accurate current regulation with lower resistance. The result is less power loss and less heat produced from the power layout.
Dual BIOS
Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.
Hardened Defenses - Fuse
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
RELENTLESS DEFENSE
A die-cast anti-bending plate reinforces the whole card while thermal pads allow cooling to reach critical component underneath.
MODEL NAME : GeForce RTX 4090 SUPRIM X 24G
GRAPHICS PROCESSING UNIT : NVIDIA GeForce RTX 4090
INTERFACE : PCI Express Gen 4
CORE CLOCKS
Extreme Performance: 2640 MHz (MSI Center)
Boost: 2625 MHz (GAMING & SILENT Mode)
CUDA CORES : 16384 Units
MEMORY SPEED : 21 Gbps
MEMORY : 24GB GDDR6X
MEMORY BUS : 384-bit

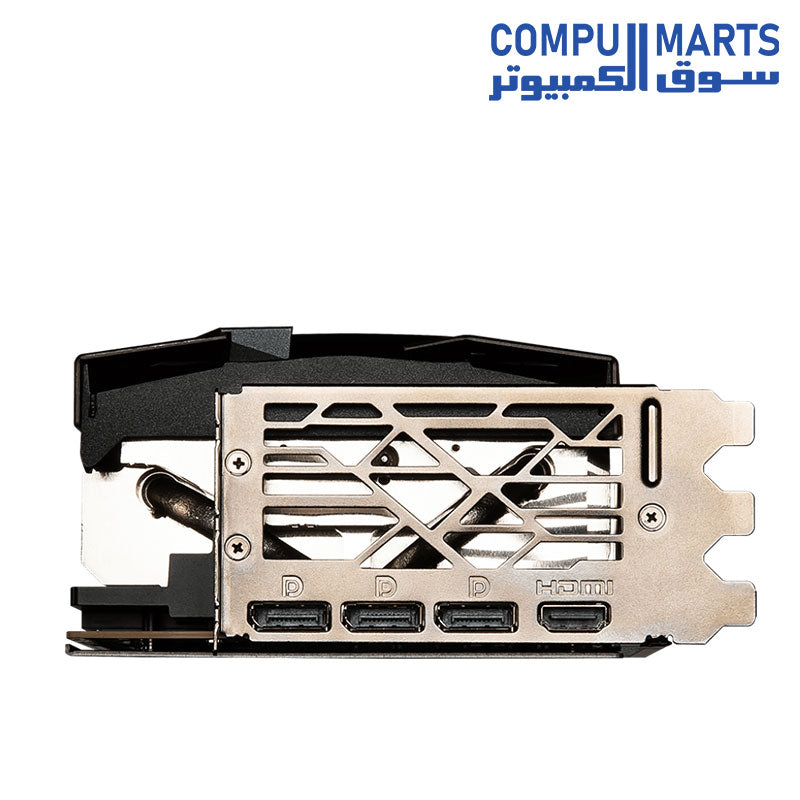

OUTPUT
DisplayPort x 3 (v1.4a)
HDMI x 1 (Supports 4K @120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)
HDCP SUPPORT : Y
POWER CONSUMPTION
Silent mode: 450W
Gaming mode: 480W
POWER CONNECTORS : 16-pin x 1
RECOMMENDED PSU : 1000W (Min. 850W)
CARD DIMENSION (MM) : 336 x 142 x 78 mm
WEIGHT (CARD / PACKAGE) : 2413g / 3636g
DIRECTX VERSION SUPPORT : 12 Ultimate
OPENGL VERSION SUPPORT : 4.6
MAXIMUM DISPLAYS : 4
G-SYNC TECHNOLOGY : Y
DIGITAL MAXIMUM RESOLUTION : 7680 x 4320
