Noctua NH-U14S, Premium CPU Cooler with NF-A15 140mm Fan
Item Dimensions LxWxH |
5.91 x 3.07 x 6.5 inches |
Brand |
Noctua |
Power Connector Type |
4-Pin |
Voltage |
12 Volts |
Cooling Method |
Fan |
Compatible Devices |
Desktop |
Noise Level |
24.6 dB |
Material |
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
Maximum Rotational Speed |
1500 RPM |
MUST PURCHASE WITH FULL PC.

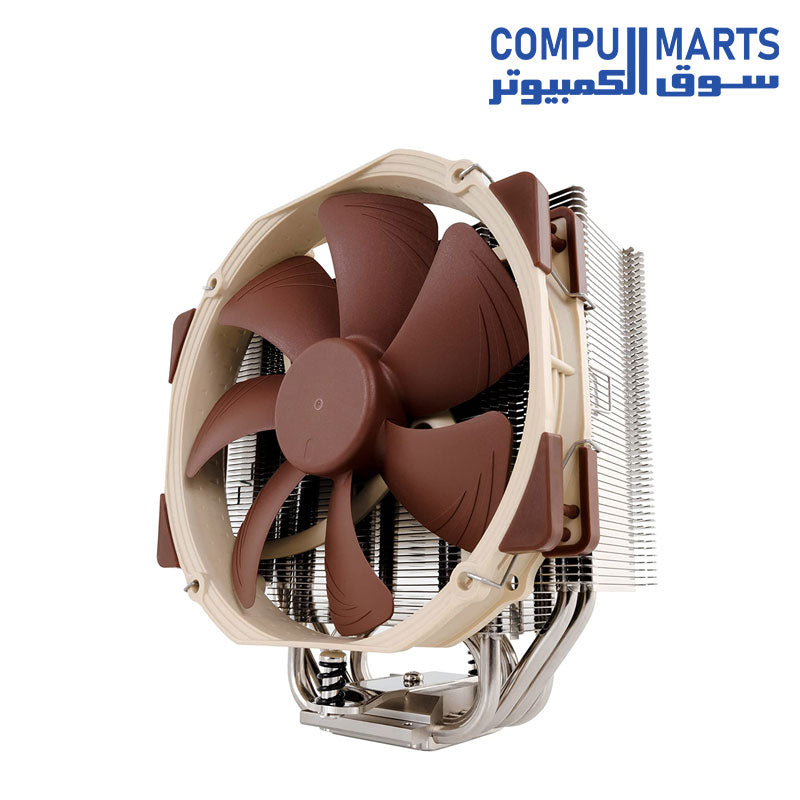

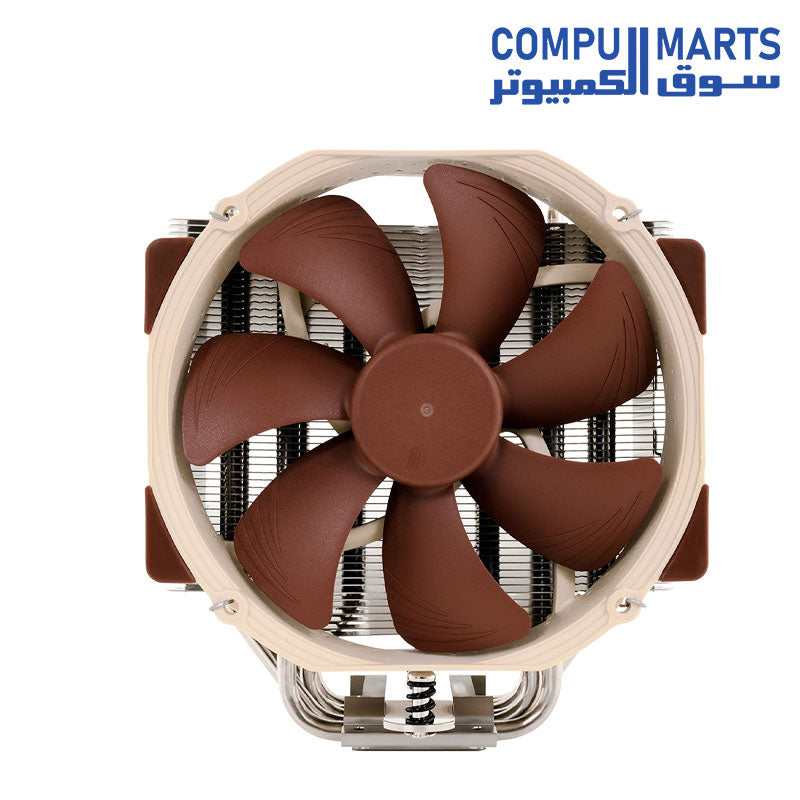

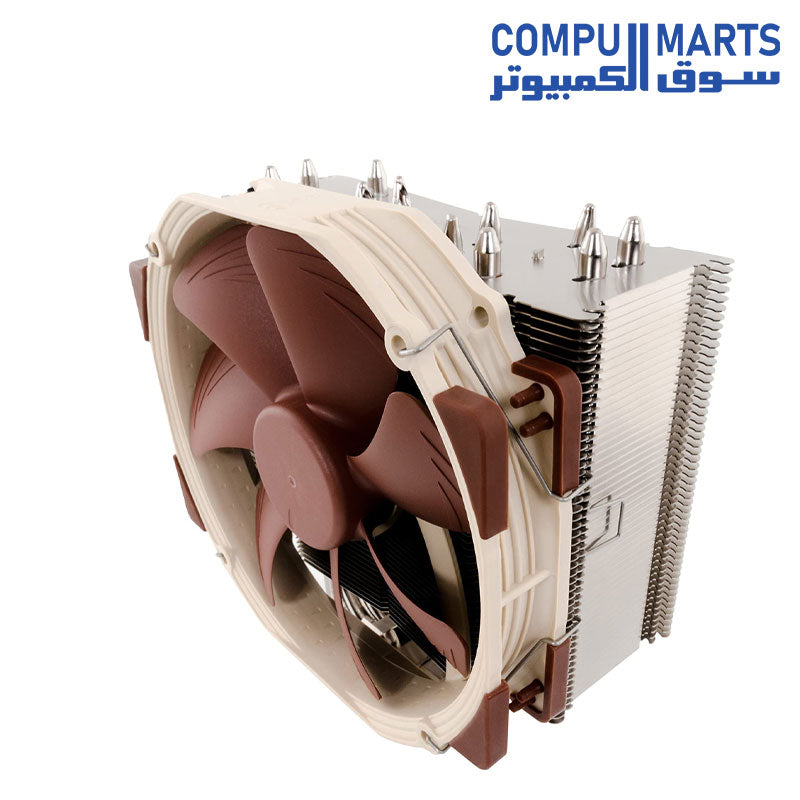

Noctua NH-U14S, Premium CPU Cooler with NF-A15 140mm Fan
-
Award-winning, slim 140mm single-tower design combines outstanding cooling performance with superb quietness of operation and excellent RAM compatibility
-
Does not overhang the RAM slots on LGA2066 and LGA2011 motherboards, ensuring full compatibility with tall modules
-
Highly optimised NF-A15 140mm fan with PWM support and Low-Noise Adaptor for automatic speed control and ultra-quiet operation
-
Includes high-end NT-H1 thermal paste and SecuFirm2 mounting system for easy installation on Intel LGA1700 (LGA17xx family) LGA1200, LGA115x, LGA2011, LGA2066 and AMD AM4 & AM5
-
Renowned Noctua quality backed up by 6-year manufacturer’s warranty, deluxe choice for Intel Core i9, i7, i5, i3 (e.g. 12900K, 12700K, 12600K) and AMD Ryzen (e.g. 5800X3D, 5700X, 5600, 5500)
The NH-U14S is the 14cm top model of Noctua’s classic U-series single tower CPU coolers, which have received more than 400 awards and recommendations from the international press. While the large, six heatpipe design and the NF-A15 140mm fan with PWM support for fully automatic speed control allow the cooler to best the renowned quiet cooling performance of all other U-series coolers, its 52mm slim shape still assures full compatibility with tall RAM modules on LGA2011/LGA2066. Topped off with the trusted, pro-grade SecuFirm2 multi-socket mounting system and Noctua’s proven NT-H1 thermal compound, the NH-U14S is a complete premium quality solution that combines superb performance, high compatibility and quiet operation.
|
|
|
|
|
|---|---|---|---|
Reasonable size for better overall compatibility Standing 165mm tall, the NH-U14S is short enough to fit most modern high-end cases. Measuring 150mm wide (including fan and fan clips), the NH-U14S provides better compatibility with multi-GPU setups as compared to tower coolers that are wider than 150mm or use fans wider than 150mm. |
Full RAM compatibility on LGA20xx With its 52mm slim design tailor-made for LGA20xx (LGA2066 & LGA2011), the NH-U14S will not overhang the RAM slots on this platform, thus ensuring full compatibility with tall memory modules. On some LGA1200/115x and AMD motherboards, the front fan may overhang the first RAM slot, so standard height RAM (up to 32mm) should be chosen when using the first slot. |
NF-A15 140mm PWM Fan The NF-A15 is a premium quality quiet 140mm fan with a round frame that complies with Noctua's AAO standard. Featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 further improves the renowned quiet cooling performance of the award-winning NF-P14. |
NT-H1 thermal compound Noctua's much-acclaimed NT-H1 is a well proven pro-grade TIM solution that provides minimum thermal resistance, excellent ease-of-use and outstanding reliability, which makes it suitable for use in professional server and workstation environments. |
Measurements
-
Height (without fan): 165mm
-
Width (without fan): 150mm
-
Depth (without fan): 52mm
-
Height (with fan): 165mm
-
Width (with fan): 150mm
-
Depth (with fan): 78mm
-
Weight (without fan): 770g
-
Weight (with fan/s): 935g
Materials
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Cooler Specifications
Scope of delivery
-
NF-A15 PWM premium fan
-
NA-RC7 Low-Noise Adaptor (L.N.A)
-
NT-H1 high-grade thermal compound
-

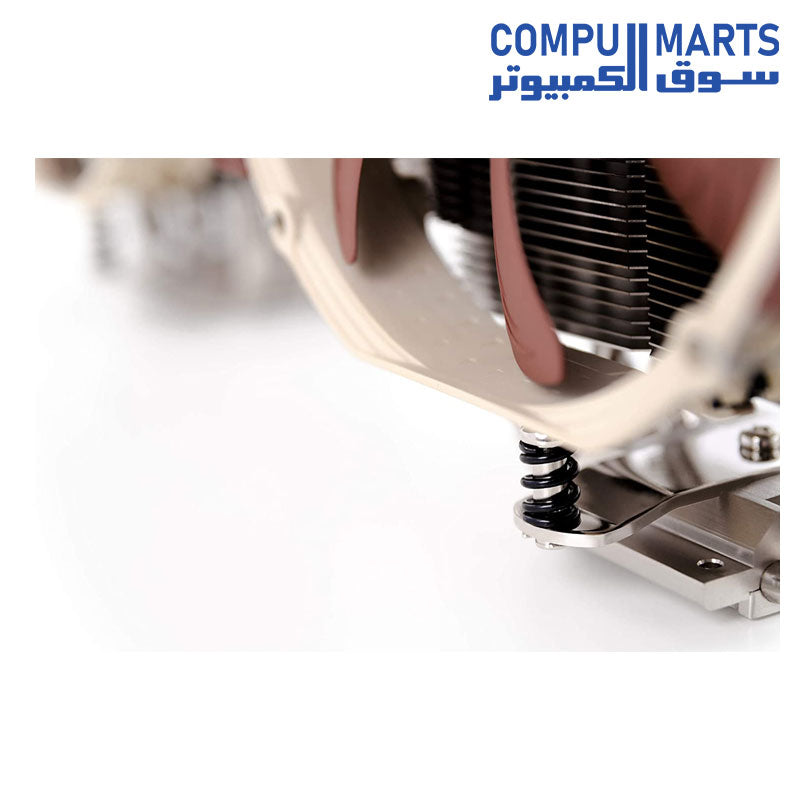

SecuFirm2 mounting kit
-
Anti-vibration pads and fan-clips for second NF-A15
-
Noctua metal case-badge
Fan compatibility
140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25
Dual Fan Ready
For users who want to achieve even better performance by adding a second, optional NF-A15 fan to create a push/pull setup, the NH-U14S includes fan clips and an extra set of custom-designed anti-vibration pads that allow to off-set the rear fan by 5mm to improve acoustics in dual-fan mode.
