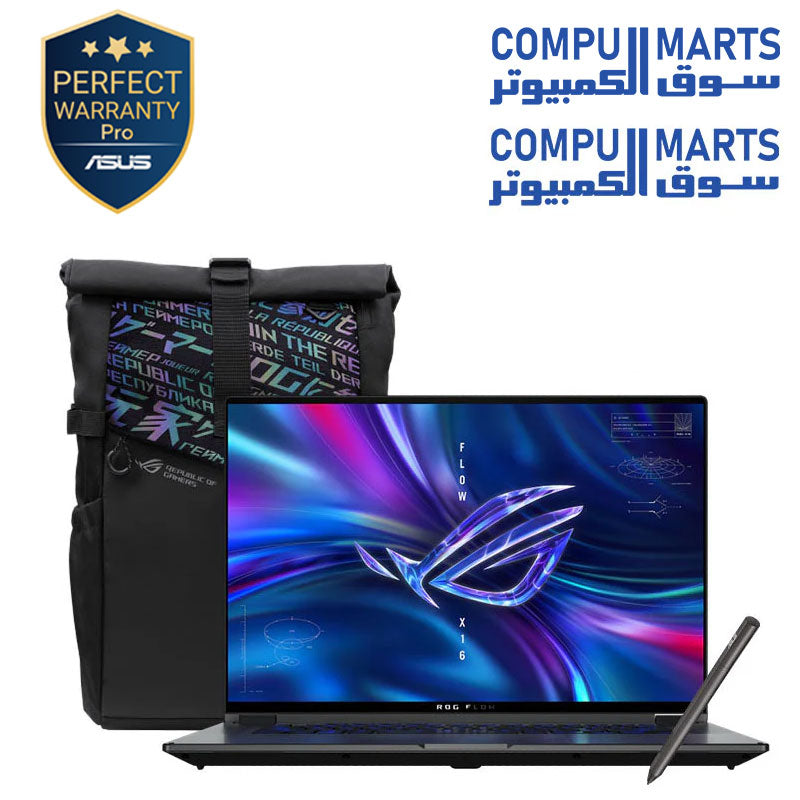

ROG Flow X16 GV601RM-BLK17W- AMD Ryzen 7 6800HS - 1TB PCIe 4.0 NVMe M.2 - RAM 16GB DDR5 - NVIDIA GeForce RTX 3060 6GB - 16-inch 165Hz Touch Screen+ROG backpack -Stylus (ASUS Pen SA201-MPP2.0 support)
Part No |
90NR0AP1-M003M0 |
Model Name |
GV601RM-BLK17W |
|
|
EAN Code |
4711081793632 |
UPC Code |
195553793636 |
|
|
Marketing Name |
ROG Flow X16 |
Color |
Off Black |
Dimension (W x D x H) |
35.5 x 24.3 x 1.94 ~ 2.19 cm (13.98" x 9.57" x 0.76" ~ 0.86") |
Weight |
2.00 Kg ( lbs) |
Processor |
AMD Ryzen 7 6800HS Mobile Processor (8-core/16-thread, 20MB cache, up to 4.7 GHz max boost) |
Chipset |
N/A |
Discrete/Optimus |
MUX Switch + Optimus |
Graphic |
NVIDIA GeForce RTX 3060 Laptop GPU |
Graphic Wattage |
ROG Boost: 1475MHz* at 125W (1425MHz Boost Clock+50MHz OC, 100W+25W Dynamic Boost) |
Graphic Memory |
6GB GDDR6 |
IGPU |
AMD Radeon™ 680M |
Panel Size |
16-inch |
Resolution |
QHD+ 16:10 (2560 x 1600, WQXGA) |
Refresh Rate |
165Hz |
Response Time (G2G) |
3ms |
Touch Screen |
Touch Screen |
Viewing Angle |
85/85/85/85 |
Panel Tech |
IPS-level |
Brightness |
500nits |
Contrast |
1200:1 |
DCI-P3 % |
100% |
Anti glare |
Glossy display |
Adaptive-Sync technology |
Adaptive-Sync |
Pantone |
Pantone Validated |
Nebula Display |
ROG Nebula Display |
Support Dolby Vision HDR |
Yes |
Support stylus |
Yes |
On board memory |
N/A |
DIMM Memory |
8GB DDR5-4800 SO-DIMM *2 |
Total System Memory |
DDR5 16GB |
Memory Slot |
2x SO-DIMM slots |
Memory Max. |
64GB |
Multi-channel memory technology |
Support dual channel memory |
How to upgrade memory |
Upgradable |
System Storage Installed |
1TB PCIe 4.0 NVMe M.2 Performance SSD |
M.2 slots support either SATA or NVMe |
2 |
M.2 SSD Support List |
1. 2x Performance PCIe*4x4 SSD2. 512G / 1TB / 2TB |
Expansion Slot (includes used) |
2x DDR5 SO-DIMM slots |
LAN |
N/A |
Wi-Fi/Bluetooth |
Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth 5.3 Wireless Card (Bluetooth version may change with OS version different.) |
I/O Ports |
1x ROG XG Mobile Interface and USB Type-C combo port (with USB 3.2 Gen2, support DisplayPort 1.4)1x USB 3.2 Gen 2 Type-C support DisplayPort / power delivery1x USB 3.2 Gen 2 Type-C support DisplayPort / power delivery / G-SYNC2x USB 3.2 Gen 2 Type-A1x card reader (microSD) (UHS-II, 312MB/s) |
Display output |
1x HDMI 2.0b support HDMI switch |
Audio |
1x 3.5mm Combo Audio Jack |
Webcam |
720P HD IR Camera for Windows Hello |
Mic |
Built-in 3-microphone array |
Keyboard Type |
Backlit Chiclet Keyboard 1-Zone RGB |
NumberPad |
N/A |
Aura Sync |
Yes |
Speakers |
4-speaker system with Smart Amplifier Technology |
Audio Tech |
AI noise-canceling technologyDolby AtmosHi-Res certificationSmart Amp TechnologySupport Microsoft Cortana near field/Far field |
Operating System |
Windows 11 Home |
Antivirus |
McAfee 30 days free trial |
Xbox Game Pass |
Xbox Game Pass Ultimate_1 month (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Ultimate. Eligible markets are determined at activation. Game catalog varies by region, device, and time.) |
Security |
BIOS Administrator Password and User Password ProtectionTrusted Platform Module (Firmware TPM) |
Battery |
90WHrs, 4S1P, 4-cell Li-ion |
Power |
ø6.0, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240C AC 50/60Hz universal |
Bundled Peripherals |
ROG backpack |
Additional Accessories |
Stylus (ASUS Pen SA201-MPP2.0 support) |
Reparability Index (for FR) |
7.0 |
