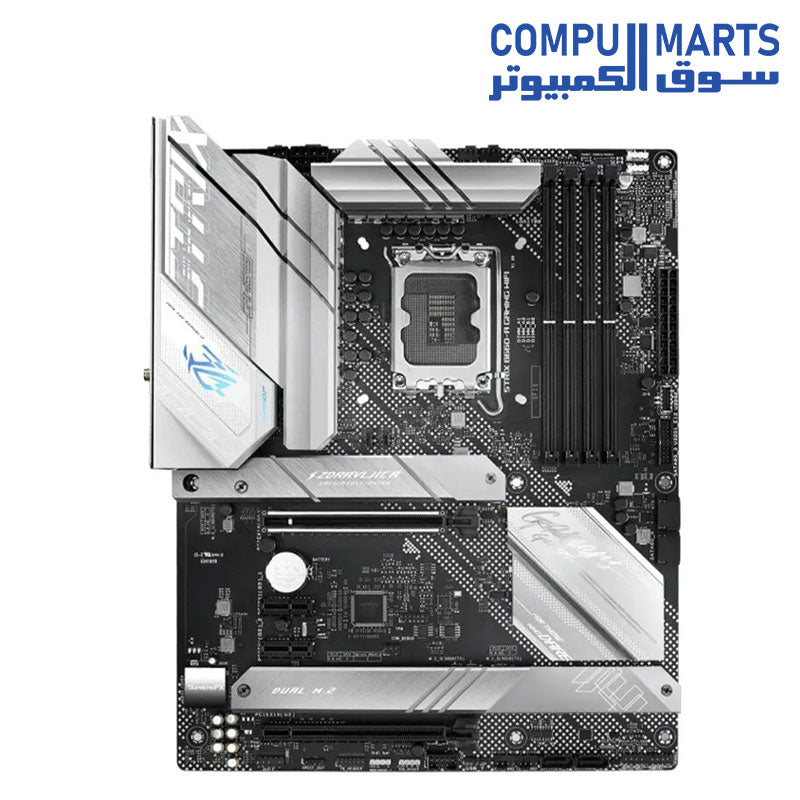

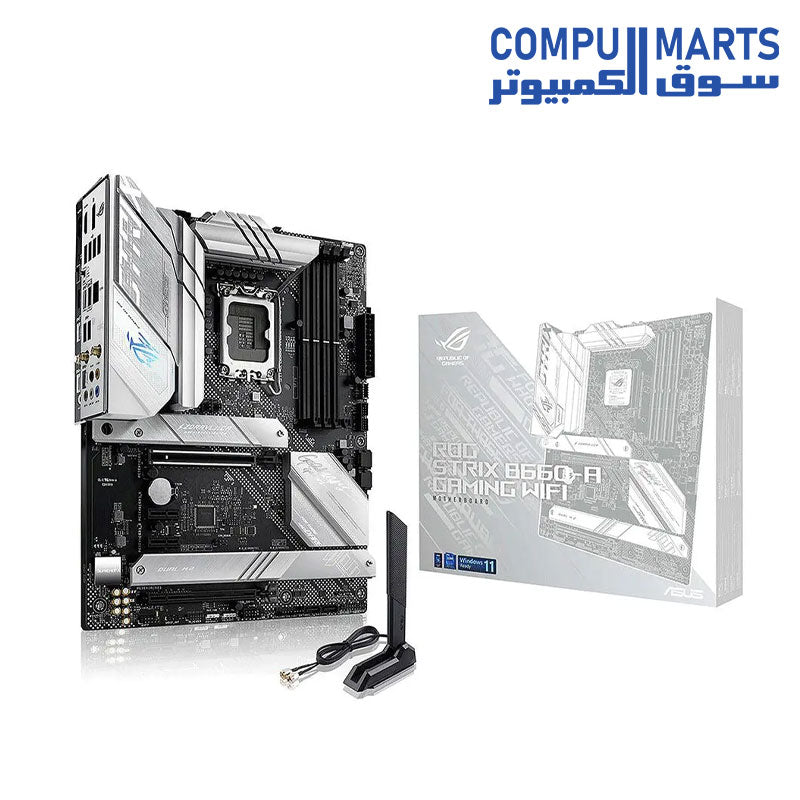

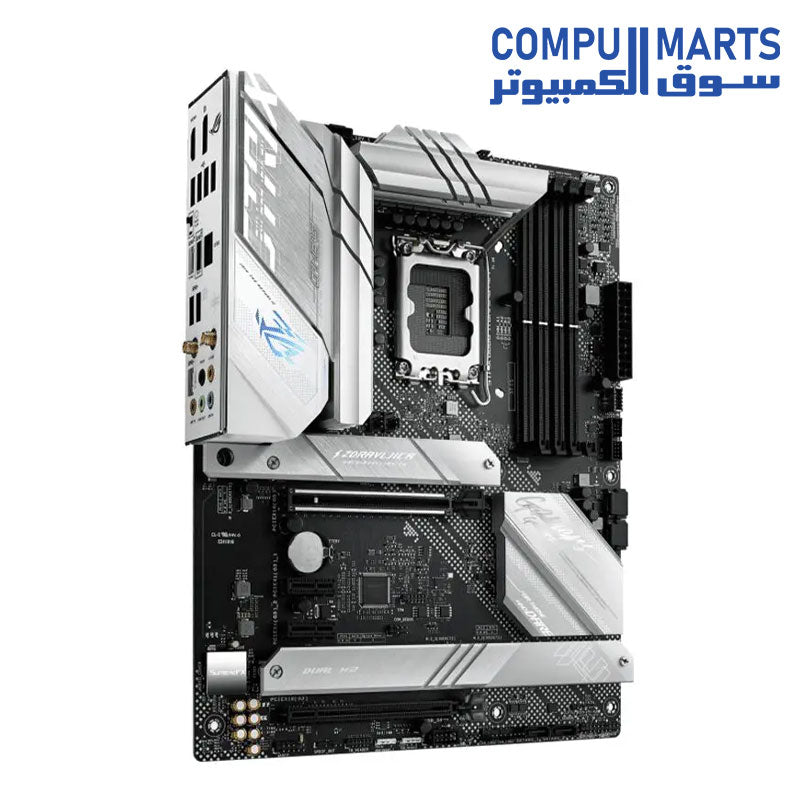

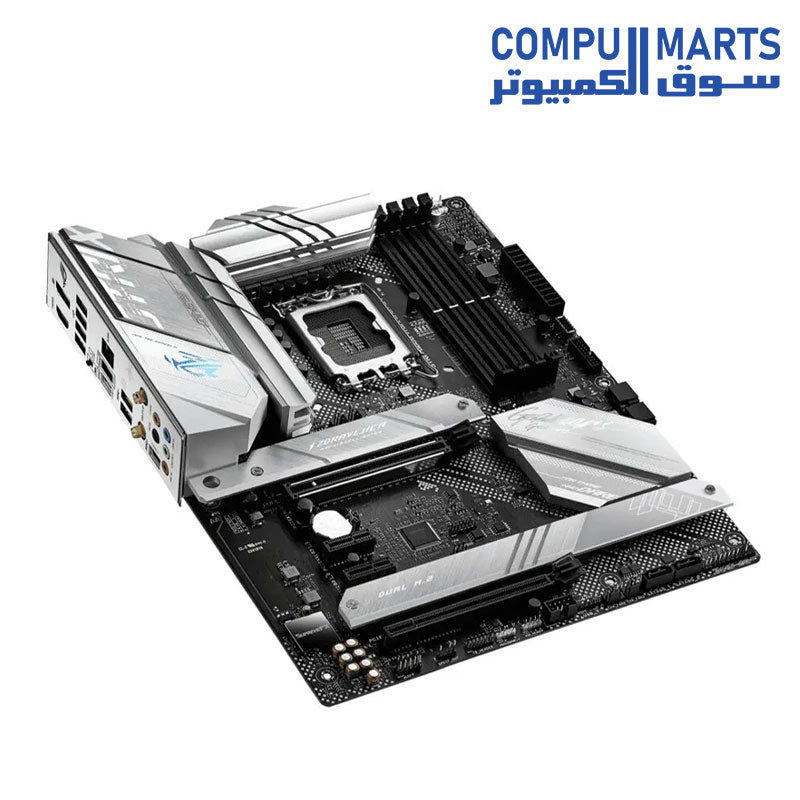

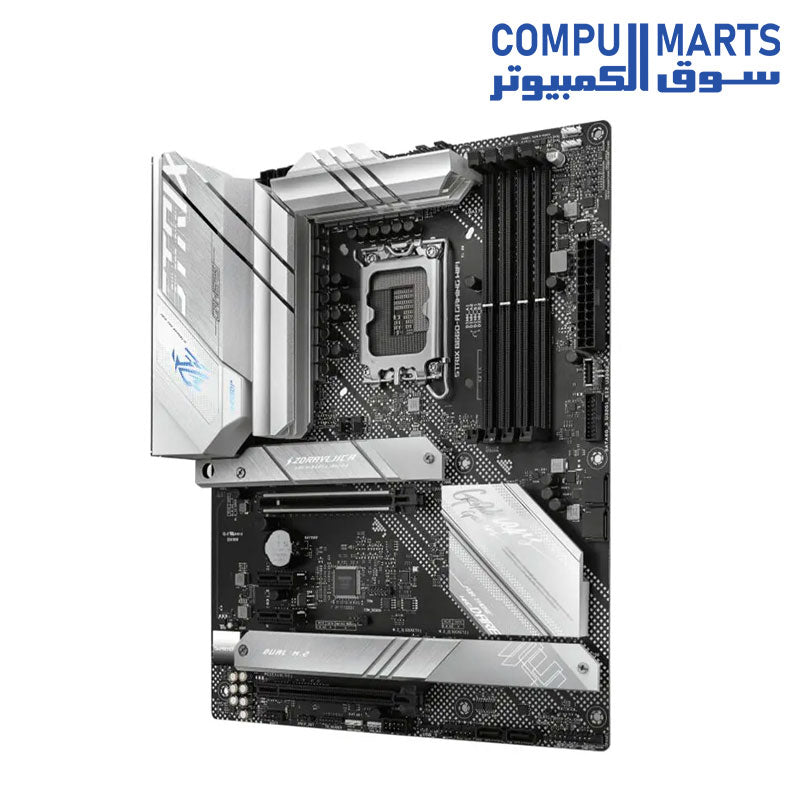

ASUS ROG STRIX B660-A GAMING WIFI DDR5 LGA 1700 ATX GAMING Motherboard Intel
Intel B660 LGA 1700 ATX motherboard with PCIe 5.0, 12+1 power stages, DDR5 memory support, ASUS Enhanced Memory Profile, Two-Way AI Noise Cancelation, AI Cooling, AI Networking, WiFi 6 (802.11ax), Intel 2.5 Gb Ethernet, three PCIe 4.0 M.2 slots with heatsinks, USB 3.2 Gen 2x2 Type-C, SATA and Aura Sync RGB lighting
-
Intel LGA 1700 socket: Ready for 13th Gen Intel Core Processors and 12th Gen Intel Core, Pentium Gold, and Celeron Processors
-
Optimal Power Solution: 12+1 power stages with ProCool power connectors, high-grade alloy chokes and durable capacitors to support multi-core processors
-
Optimized Thermal Design: Integrated I/O cover, VRM heatsinks with high conductivity thermal pads, and three onboard M.2 heatsinks
-
High-performance Networking: Onboard Intel WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
-
Best Gaming Connectivity: Supports HDMI 2.1 and DisplayPort 1.4 output, three M.2 slots, as well as USB 3.2 Gen 2x2 Type-C
-
Intelligent Control: ASUS-exclusive AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
-
DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack button and Q-LED
-
Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 headers
-
Industry-leading Gaming Audio: ALC4080 with a Savitech SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio III
-
Renowned Software: Bundled 60-day free trial of AIDA64 Extreme, and an intuitive UEFI BIOS dashboard
TEAMED POWER STAGES
12+1 power stages combine high-side and low-side MOSFETS and drivers into a single package, delivering the power and efficiency that the latest Intel processors can take full advantage of.
ALLOY CHOKES AND CAPACITORS
High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
PROCOOL POWER CONNECTOR
The ASUS ProCool socket is built to exacting specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation.
DIGI+ POWER CONTROL
The Digi+ voltage regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU.
SIX-LAYER PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
PCIe Performance
With three strategically placed M.2 slots, ROG Strix B660-A Gaming WiFi takes full advantage of CPU and chipset bandwidth to usher in support for dizzyingly quick PCIe 4.0 SSDs, and high-capacity drives that blaze past traditional SATA-based storage.
DDR5 Overclocking Strength
Comprehensive memory tuning options are the cornerstone of ROG motherboards. For DDR5, ROG Strix B660-A Gaming WiFi breaks performance limits by providing a stacked suite of overclocking parameters for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC).
-
A dedicated circuit on the motherboard safely circumvents DDR5 memory PMIC restrictions, allowing you to step past the default 1.1-volt limit and push frequency and timings to the max.
-
Ordinarily, a restricted PMIC that has been unlocked requires the system to be fully power-cycled each time memory voltage is adjusted. ROG motherboards leverage onboard hardware and firmware to cleverly work around this irksome limitation, enabling voltage adjustments to be applied through the same soft system-reset process employed for previous generations of DDR memory.
-
For users new to memory overclocking, ROG Strix B660-A Gaming WiFi includes the exclusive ASUS Enhanced Memory Profile (AEMP)firmware feature for PMIC-restricted memory modules.
UNDENIABLY ROG STRIX
The ROG Strix B660-A Gaming WiFi will turn heads with a striking silver-white finish that contrasts with a bold Aura RGB-illuminated logo. Meanwhile, parallel strakes and angled text on the aluminum I/O, M.2 and PCH heatsinks tie the whole aesthetic together and underline the ROG Strix fundamentals of speed, diversity and attitude.
CPU
Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
for CPU support list.
Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset : Intel B660 Chipset
Memory
4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
OptiMem II
Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for memory support list. Actual memory data rate depends on the CPU types and DRAM modules
Graphics
1 x DisplayPort 1 x HDMI port
Graphics specifications may vary between CPU types.
Supports max. 4K 60Hz as specified in DisplayPort 1.4Supports 4K 60Hz as specified in HDMI 2.1
VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
Intel 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel B660 Chipset
1 x PCIe 3.0 x16 slot (max x4)
2 x PCIe 3.0 x1 slots
Please check PCIe bifurcation table in Chapter 1 // support site.
Supports Intel Optane Memory H Series on PCH-attached PCIe slot
Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
Intel 13th & 12th Gen processors support PCIe 4.0 x4 mode.
Intel B660 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
USB
Rear USB (Total 9 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x USB Type-A)
3 x USB 3.2 Gen 1 ports (2 x USB Type-A+1 x USB Type-C)
4 x USB 2.0 ports (4 x USB Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 2 connector (1 x USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 10-1 pin header + 1 USB 2.0 4 pin header support additional 3 USB 2.0 ports
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback"
Audio Features
-SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Premium audio capacitors
- Audio cover
Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

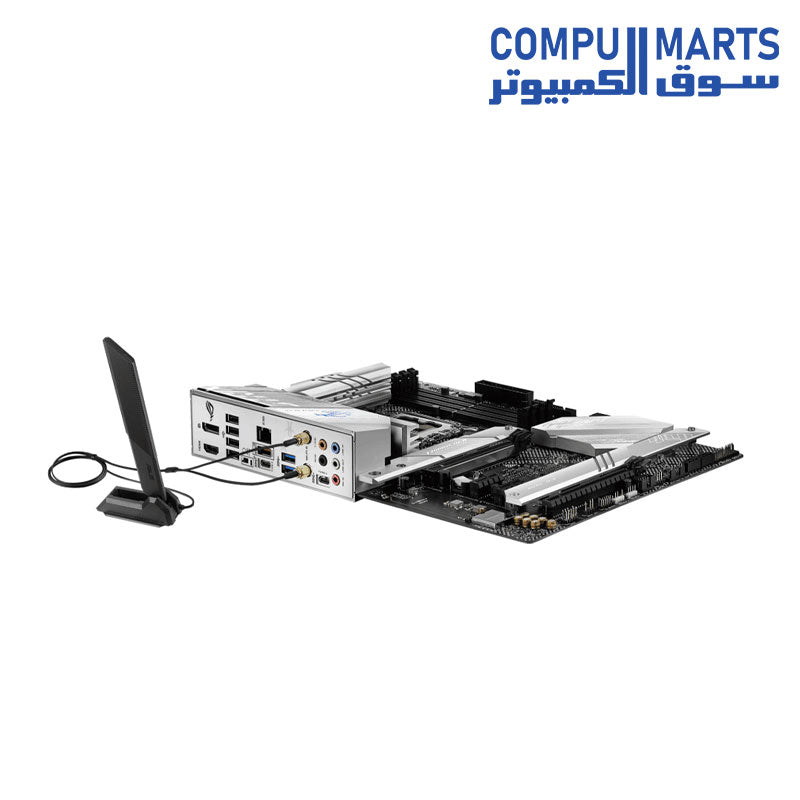

Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x USB Type-A)
3 x USB 3.2 Gen 1 ports (2 x USB Type-A + 1 x USB Type-C)
4 x USB 2.0 ports (4 x USB Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin 12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (support USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 10-1pin header + 1 USB 2.0 4pin header support additional 3 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt header
Special Features
Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- ROG AURA sync Armor
- AURA RGB header
- Addressable Gen 2 headers
Software Features
ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS Sound Unbound
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4
- Two-Way AI Noise Cancelation
AI Suite 3
- Performance And Power Saving Utility
- TurboV EVO
-EPU
DIGI+ VRM
ASUS CPU-Z
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
MemTest86
BIOS : 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability : WOL by PME, PXE
Accessories
Cables : 4 x SATA 6Gb/s cables
Miscellaneous :
1 x Cable ties pack
1 x M.2 Rubber Package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix sticker
1 x ROG Strix thank you card
Installation Media : 1 x Support DVD
Documentation : 1 x User guide
Operating System : Windows 11 64-bit, Windows 10 64-bit
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
