XPG Core Reactor II Modular PSU ATX3.0 - 80 Plus Gold - ATX - Fully Modular Power Supply 1000 Watt

Vendor: XPG
SKU: COREREACTORII1000G-BKCUS
Availability: In Stock
Product Type: Computer Power Supplies
8,000.00 EGP
8,000.00 EGP
Limited-Time Offers, End in: 151D 8H 23M 0S

SHIPPING ALL ACROSS EGYPT!

Safe shipping

Estimated to be delivered on 1-5 Working Days .

Enjoy With Compumarts Warranty

Learn More.
Core Reactor II-Computer Power Supplies-XPG- Fully Modular-1000 Watt

XPG Core Reactor II Modular PSU ATX3.0 - 80 Plus Gold - ATX - Fully Modular Power Supply 1000 Watt

8,000.00 EGP

XPG Core Reactor II Modular PSU ATX3.0 - 80 Plus Gold - ATX - Fully Modular Power Supply 1000 Watt

8,000.00 EGP

XPG Core Reactor II Modular PSU ATX3.0 - 80 Plus Gold - ATX - Fully Modular Power Supply 1000 Watt

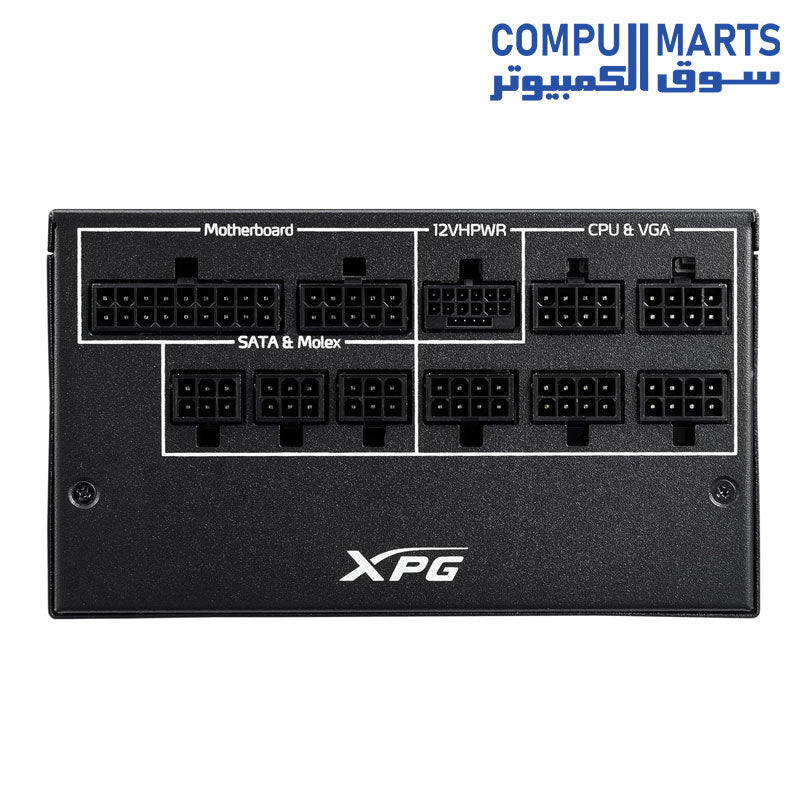

Total Connectors

1x 20+4-Pin ATX Motherboard
2x 4+4-Pin EPS CPU
1x 16-Pin PCIe (12VHPWR)
9x 6+2-Pin PCIe
9x 15-Pin SATA
3x 4-Pin Peripheral / Molex

Cable Design

Modular

Total Wattage

1000 W

Number of +12 V Rails

1

Efficiency Rating

80 PLUS Gold

Form Factor

ATX

Connectivity

Total Connectors

1x 20+4-Pin ATX Motherboard
2x 4+4-Pin EPS CPU
1x 16-Pin PCIe (12VHPWR)
9x 6+2-Pin PCIe
9x 15-Pin SATA
3x 4-Pin Peripheral / Molex

Cable Design

Modular

PCIe Connector Distances

25.6" / 650 mm

SATA Connector Distances

37.4" / 950 mm

Peripheral Connector Distances

37.4" / 950 mm

ATX Connector Distance

25.6" / 650 mm

EPS Connector Distances

25.6" / 650 mm

Electrical

Total Wattage

1000 W

Number of +12 V Rails

1

Combined Power for +12 V

1000 W

Max Load for +12 V

83.5 A

Combined Power for +3.3/+5 V

120 W

Max Load for +3.3 V

22 A

Max Load for +5 V

22 A

Max Power for +5 Vsb

15 W

Max Load for +5 Vsb

3 A

Max Power for -12 V

3.6 W

Max Load for -12 V

0.3 A

Peak Power

1000 W

AC Input Power

100 to 240 VAC, 50 / 60 Hz at 10 A

General

Efficiency Rating

80 PLUS Gold

Active Power Factor Correction

Yes

Cooling

Fan Size

135 mm

Fan Speed

2400 rpm

Bearing Type

Fluid Dynamic Bearings (FDB)

Physical

Form Factor

ATX

Compliance

ATX 12 V v3.0

Protection

No Load Operation, Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Surge and Inrush Protection, Under-Voltage Protection

Certifications

CE, CB, FCC, TUV, cTUVus, TUV S-Mark, NOM, BSMI, UKCA, EAC, CCC

Dimensions

6.3 x 5.9 x 3.4" / 160 x 150 x 86 mm

Weight

3.9 lb / 1.77 kg

Packaging Info

Package Weight

8.425 lb

Box Dimensions (LxWxH)

13.1 x 8.4 x 6.2"
